HPE ProLiant DL380 Gen10 Plus vs HPE ProLiant DL380 Gen10

There are a number of key differences between the HPE ProLiant DL380 Gen10 Plus and the HPE ProLiant DL380 Gen10, we have covered the main differences between the two ranges below.

Skip to Comparisons

We've organised this article by comparing the HPE DL380 G10 range and HPE DL380 G10 + Range by the following sections. Click to read more.

Exploded Diagram Key Features Processors Memory Storage Drives
Power Security Expansion Slots Networking Cooling
Graphics HPE Computation and Graphics Accelerators Embedded Management Operating System and Virtualisation Software

Key Features

HPE ProLiant DL380 Gen10 Plus

Handle The Most Demanding Workloads

Built for the most demanding workloads, the HPE ProLiant DL380 Gen10 Plus features improved workload performance and efficiency.

All-Around Security

HPE ProLiant DL380 Gen10 Plus servers feature enhanced comprehensive security with a multitude of key security features including UEFI Secure Boot and Secure Start support, immutable silicon root of trust and rollback capabilities.

Intelligent Management Automation

The HPE ProLiant DL380 Gen10 Plus server automates and simplifies management tasks, creating a solid foundation for and an open, hybrid cloud platform.

HPE ProLiant DL380 Gen10

Enhanced Compute Density

The ProLiant DL380 Gen10 features enhanced GPU density, with support expanded from five to seven GPUs. You are able to benefit from one of the densest Accelerator/GPU platforms and enjoy diverse workload performance and AI/deep learning optimisation.

Flexible Design

In addition to featuring an adaptable chassis, the DL380 Gen10 also provides you with flexible networking choices. The redesigned HPE Smart Array Controllers enable you to select the 12 Gb/s that best fits your requirements, and to operate in both SAS and HBA mode.

Processors

HPE ProLiant DL380 Gen10 Plus 3rd Gen Intel Xeon Scalable Processors

HPE ProLiant DL380 Gen10 Plus dual-socket servers are powered by 3rd Gen Intel Xeon Scalable processors featuring up to 40 cores, in comparison to the DL380 Gen10 which is powered by the older 2nd Gen Intel Xeon Scalable processor range. The 3rd Gen Intel Xeon Scalable processor range possesses many advantages over its predecessor including more cores, cache and enhanced performance.

Architectural improvements together with new allocation and execution resources ensure a 20% increase in instructions per cycle per core. When that is combined with the increased core count and additional cache, there are huge improvements over the previous generation in terms of real-world performance.

3rd Gen Intel Xeon Scalable processors support up to 6TB of system memory per socket and up to 8 channels of DDR4-3200 RAM, which is a significant improvement on its predecessor's maximum 6 channels and DDR4-2933.

PCIe Gen4 connectivity with 64 lanes is now supported, providing you with increased bandwidth over the previous generations PCIe 3 and features an extra 24 lanes for you to utilise.

Whilst the previous architecture supported up to four Ultra Path Interconnect channels to transport data between many CPUs, the new architecture boosts that number to six, enhancing bandwidth between CPUs and improving platform scalability for I/O intensive workloads.

3rd Gen Xeon Scalable Platinum Processors
  • Up to 40 cores per Intel Xeon Platinum processor.
  • Up to 8 memory channels at up to 3200 MT/s
  • Features built-in AI acceleration (Intel DL Boost) with int8 (VNNI) and bfloat165 quantisation for accelerated AI inference and training performance.
  • Features Intel SGX, the most deployed trusted execution environment, with up to 512GB enclave per processor.
3rd Gen Xeon Scalable Gold Processors
  • Up to 32 cores per Intel Xeon Gold processor
  • Up to 8 memory channels at up to 3200 MT/s.
  • Featuring Intel SGX, the most deployed trusted execution environment, with up to 64GB enclaves per processor.
3rd Gen Xeon Scalable Silver Processors
  • Up to 20 cores per Intel Xeon Silver processor.
  • Up to 8 memory channels at up to 2667 MT/s.
  • Featuring Intel SGX, the most deployed trusted execution environment, with up to 8GB enclave per processor.

HPE ProLiant DL380 Gen10 2nd Gen Intel Xeon Scalable Processors

The HPE ProLiant DL380 Gen10 can be powered by up to 2x 2nd Gen Intel Xeon Scalable processors featuring up to 28 cores.

2nd Gen Intel Xeon Scalable processors feature increased per-core performance over the previous generation and provide high-performance and scalability for compute-intensive workloads. Intel Optane Persistent Memory is supported and there is a 50% increase in memory bandwidth and capacity.

Enjoy 48 lanes of PCIe 3.0 bandwidth and throughput for taxing I/O-intensive workloads. 2nd Gen Intel Xeon Scalable processors feature up to four Intel Ultra Path Interconnect channels. Intel Ultra Path delivers the ideal balance between enhanced throughput and energy efficiency.

2nd Gen Xeon Scalable Platinum Processors
  • Featuring outstanding processing performance and solid, hardware-based security, these processors are ideal for mission critical, AI, real-time analytics machine learning and multi-cloud workloads.
2nd Gen Xeon Scalable Gold Processors
  • Supporting higher memory speeds, improved memory capacity and scalability, Intel Xeon Gold processors provide significantly enhanced performance, reliability and hardware-enhanced security.
2nd Gen Xeon Scalable Silver Processors
  • Providing essential performance, better memory speed and power efficiency, Intel Xeon Silver processors deliver the performance needed for entry data centre computes, storage and network.
2nd Gen Xeon Scalable Bronze Processors
  • Intel Xeon Bronze processors provide entry-level performance for small business and basic storage servers and deliver the reliability, serviceability and availability to meet your needs.

Processor Cache

HPE ProLiant DL380 Gen10 Plus Processor Cache Options
60 MB
57 MB
54 MB
48 MB
42 MB
39 MB
36 MB
24 MB
18 MB
12 MB
HPE ProLiant DL380 Gen10 Processor Cache Options
38.50 MB
35.75 MB
33.00 MB
30.25 MB
27.50 MB
24.75 MB
22.00 MB
19.25 MB
16.50 MB
13.75 MB
11.00 MB
8.25 MB

Processor Speed

HPE ProLiant DL380 Gen 10 Plus Processor Speeds Options:
3.6GHz
3.2GHz
3.1GHz
3.0GHz
2.9GHz
2.8GHz
2.6GHz
2.4GHz
2.3GHz
2.2GHz
2.1GHz
2.0GHz
HPE ProLiant DL380 Gen 10 Speed Options
3.9GHz
3.8GHz
3.6GHz
3.4GHz
3.3GHz
3.2GHz
3.1GHz
3.0GHz
2.9GHz
2.8GHz
2.7GHz
2.6GHz
2.5GHz
2.4GHz
2.3GHz
2.2GHz
2.1GHz
1.9GHz
1.8GHz

Memory

HPE ProLiant DL380 Gen10 Plus

The HPE ProLiant 380 Gen10 Plus features 32 DIMM slots, HPE DDR4 SmartMemory with up to 8.1 TB RDIMM (4 TB per processor) / up to 11.2 TB – LRDIMM and Intel Optane Persistent Memory 200 Series (5.6 TB per processor with 8x LRDIMM and 8x 512 GB Intel Optane PMem). Up to 3200MHz.

Type HPE DDR4 SmartMemory, Registered (RDIMM)
DIMM Slots Available 32 - 16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM) 8.0 TB 32 x 256 GB LRDIMM @ 3200 MT/s
Maximum capacity (RDIMM) 2.0 TB 32 x 64 GB RDIMM @ 3200 MT/s
Maximum capacity (Intel Optane Persistent Memory for HPE) 8.0 TB 16 X 512 GB Memory Modules
What Memory Modules Are Supported by HPE ProLiant DL380 Gen10 Plus Servers?
Registered DIMMs (RDIMMs)
HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
HPE 32GB (1x32GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
Load Reduced DIMMs (LRDIMMs)
HPE 128GB (1x128GB) Quad Rank x4 DDR4-3200 CAS-22-22-22 Load Reduced Smart Memory Kit
HPE 256GB (1x256GB) Octal Rank x4 DDR4-3200 CAS-26-22-22 Load Reduced 3DS Smart Memory Kit
HPE Persistent Memory (Intel Optane)
Intel Optane 128GB persistent memory 200 Series for HPE
Intel Optane 256GB persistent memory 200 Series for HPE
Intel Optane 512GB persistent memory 200 Series for HPE

HPE ProLiant DL380 Gen10

In comparison the HPE ProLiant 380 Gen10 features 24 DIMM slots (Up to 12 per processor) with capacity of up to 7.6TB. Up to 2933MHz. Compatible with Intel Optane Persistent Memory 100 series.

Type HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM Slots Available 24 - 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM) 3.0 TB 24 x 128 GB LRDIMM @ 2933 MT/s
Maximum capacity (RDIMM) 1.54 TB 24 x 64 GB RDIMM @ 2933 MT/s
Maximum capacity (Intel Optane Persistent Memory for HPE) 6.0 TB 12 X 512 GB Memory Modules @ 2666 MT/s
Maximum capacity (HPE NVDIMMs) 192 GB 12 x 16 GB NVDIMM @ 2666 MT/s
What Memory Modules Are Supported by HPE ProLiant DL380 Gen10 Servers?
Registered DIMMs (RDIMMs)
HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
HPE 32GB (1x32GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory Kit
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
Load Reduced DIMMs (LRDIMMs)
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit
HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit
HPE 128GB (1x128GB) Octal Rank x4 DDR4-2933 CAS-24-21-21 Load Reduced 3DS Smart Memory Kit
Intel Optane persistent memory for HPE
Intel Optane 128GB persistent memory 100 Series for HPE
Intel Optane 256GB persistent memory 100 Series for HPE
Intel Optane 512GB persistent memory 100 Series for HPE

Storage Drives

HPE ProLiant DL380 Gen10 Plus Storage Drives

  • 8 or 12 LFF SAS/SATA/SSD
  • 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD
  • 2 M.2 SATA SSD standard on primary riser (depends on configuration)
  • 8 SFF mid-tray optional, 6 SFF rear drive optional or 4 LFF mid tray optional
  • 3 LFF rear-drive optional and 2 SFF or 2 Dual UFF rear-drive (optional), 20 SFF NVMe (optional)

How Many Drives Does the HPE ProLiant DL380 Gen10 Plus Support?

Drive Capacity Configuration
Hot Plug SFF SAS HDD 550.8 TB 24+8+4 x 15.3 TB* (with optional rear SFF drive cage)
Hot Plug SFF SATA HDD 276.48 TB 24+8+4 x 7.68 TB (with optional SFF drive cage)
Hot Plug LFF SAS HDD 367.68 TB 12+4+4 x 18 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA HDD 367.68 TB 12+4+4 x 18 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF NVMe PCIe SSD 385.92 TB 24 x 15.36TB + 8 x 1.92TB < 12W + 2 x 960GB < 10W

HPE ProLiant DL380 Gen10 Storage Drives

  • 8 or 12 LFF SAS/SATA/SSD
  • 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD
  • 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF rear drive optional
  • 20 SFF NVMe optional
  • NVMe support via Express Bay will limit maximum drive capacity

How Many Drives Does the HPE ProLiant DL380 Gen10 Support?

Drive Capacity Configuration
Hot Plug SFF SAS HDD 72.0 TB 24+6 x 2.4 TB* (with optional rear SFF drive cage)
Hot Plug SFF SATA HDD 60.0 TB 24+6 x 2 TB (with optional SFF drive cage)
Hot Plug LFF SAS HDD 311.68 TB 12+4+3 x 16 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA HDD 311.68 TB 12+4+3 x 16 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF SAS SSD 459 TB 24+6 x 15.3 TB (with optional rear SFF drive cage)
Hot Plug SFF SATA SSD 230.4 TB 24+6 x 7.68 TB (with optional rear SFF drive cage)
Hot Plug LFF SATA SSD 44.16 TB 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SAS SSD 44.16 TB 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF NVMe PCIe SSD 307.2 TB 20 x 15.36 TB NVMe

Power

HPE ProLiant DL380 Gen10 Plus Power Supplies:

  • HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    (Available in 94% and 96% efficiency. Also available in -48VDC and 227VAC/380VDC power inputs.)
  • HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    (1 available in 94% efficiency.)

HPE ProLiant DL380 Gen10 Power Supplies:

  • HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    (Available in 94% efficiency.)
  • HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    (Available in 94% and 96% efficiency. Also available in -48VDC and 227VAC/380VDC power inputs.)
  • HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
    (Available in 94% efficiency. Also available in -48VDC)

Security

Both the HPE ProLiant DL380 Gen10 Plus and the HPE ProLiant DL380 Gen10 feature a wide range of security features to ensure the safety and protection of your server solution.

  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates – components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • TPM (Trusted Platform Module) 1.2 option
  • Configurable for PCI DSS compliance
  • TPM (Trusted Platform Module) 2.0 option
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Bezel Locking Kit option
  • Support for Commercial National Security Algorithms (CNSA)
  • Chassis Intrusion detection option
  • Secure Recovery recover critical firmware to known good state on detection of compromised firmware

Expansion Slots

HPE ProLiant DL380 Gen10 Plus Expansion Slots:

Primary Riser1
Slots # Technology Bus Width Connector Width Slot Form Factor
1 PCIe 4.0 x8 x16 Full-height, Full-length Slot
2 PCIe 4.0 x16 x16 Full-height, Full-length Slot
3 PCIe 4.0 x8 x16 Full-height, Full-length Slot
Primary Riser2
Slots # Technology Bus Width Connector Width Slot Form Factor
1 PCIe 4.0 x16 x16 Full-height, Full-length Slot
2 PCIe 4.0 x16 x16 Full-height, Full-length Slot
3 N/A N/A N/A N/A
Primary Riser3
Slots # Technology Bus Width Connector Width Slot Form Factor
1 N/A N/A N/A N/A
1 PCIe 4.0 x16 x16 Full-height, Full-length Slot
2 PCIe 4.0 x16 x16 Full-height, Full-length Slot
3 PCIe 4.0 x16 x16 Full-height, Full-length Slot
Secondary Riser1
Slots # Technology Bus Width Connector Width Slot Form Factor
4 PCIe 4.0 x8 x16 Full-height, Full-length Slot
5 PCIe 4.0 x16 x16 Full-height, Full-length Slot
6 PCIe 4.0 x8 x16 Full-height, Full-length Slot
Secondary Riser2
Slots # Technology Bus Width Connector Width Slot Form Factor
4 PCIe 4.0 x16 x16 Full-height, Full-length Slot
5 PCIe 4.0 x16 x16 Full-height, Full-length Slot
6 N/A N/A N/A N/A
Secondary Riser3
Slots # Technology Bus Width Connector Width Slot Form Factor
4 N/A N/A N/A N/A
4 PCIe 4.0 x16 x16 Full-height, Full-length Slot
5 PCIe 4.0 x16 x16 Full-height, Full-length Slot
Tertiary Riser1
Slots # Technology Bus Width Connector Width Slot Form Factor
7 PCIe 4.0 x16 x16 Full-height, Full-length Slot
8 N/A N/A N/A N/A
Tertiary Riser2
Slots # Technology Bus Width Connector Width Slot Form Factor
7 PCIe 4.0 x8 x16 Full-height, Full-length Slot
8 PCIe 4.0 x8 x16 Full-height, Full-length Slot

HPE ProLiant DL380 Gen10 Expansion Slots:

Primary Riser
Slots # Technology Bus Width Connector Width Slot Form Factor
1 PCIe 3.0 x8 x8 Full-height, Full-length Slot
2 PCIe 3.0 x16 x16 Full-height, Full-length Slot
3 PCIe 3.0 x8 x8 Full-height, Full-length Slot
Secondary Riser
Slots # Technology Bus Width Connector Width Slot Form Factor
1 PCIe 3.0 x8 x8 Full-height, Full-length Slot
2 PCIe 3.0 x16 x16 Full-height, Full-length Slot
3 PCIe 3.0 x8 x8 Full-height, Full-length Slot
Tertiary Riser
Slots # Technology Bus Width Connector Width Slot Form Factor
1 PCIe 3.0 x8 x8 Full-height, Full-length Slot
2 PCIe 3.0 x8 x8 Full-height, Full-length Slot

Networking

HPE ProLiant DL380 Gen10 Plus Networking

For networking, the HPE ProLiant DL380 Gen10 Plus provides the option of either OCP 3.0 or certain stand-up network adapters for primary networking selection in addition to extra/optional stand-up network adapters.

1 Gigabit Ethernet Adapters
Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE
10 Gigabit Ethernet Adapters
Marvell QL41134HLCU Ethernet 10Gb 4-port SFP+ Adapter for HPE
Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Marvell QL41132HLRJ Ethernet 10Gb 2-port BASE-T Adapter for HPE
Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE
Intel X710-DA2 Ethernet 10Gb 2-port SFP+ Adapter for HPE
Marvell QL41132HLCU Ethernet 10Gb 2-port SFP+ Adapter for HPE
25 Gigabit Ethernet Adapters
Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Marvell QL41232HLCU Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Xilinx X2522-25G Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
100 Gigabit Ethernet Adapters
HPE Ethernet 100Gb 1-port QSFP28 PCIe3 x16 MCX515A-CCAT Adapter
Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE
200 Gigabit Ethernet Adapter
Mellanox MCX623105AS-VDAT Ethernet 200Gb 1-port QSFP56 Adapter for HPE
OCP 3.0 Adapters
Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Marvell QL41132HQRJ Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Intel X710-DA2 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE
Marvell QL41132HQCU Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE
Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
Mellanox MCX562A-ACAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
Marvell QL41232HQCU Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE
Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE
OCP 3.0 Enablement
HPE ProLiant DL300 Gen10 Plus OCP x16 Enablement Kit
HPE InfiniBand
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 OCP3 MCX653435A-HDAI Adapter
HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 MCX653105A-HDAT Adapter
HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter
HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter
HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter

HPE ProLiant DL380 Gen10 Networking

The HPE ProLiant DL380 Gen10 features the option of either HPE FlexibleLOM or select stand-up network adapters for primary networking selection in addition to extra/optional stand-up network adapters.

1 Gigabit Ethernet Adapters
HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter
HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter
HPE Ethernet 1Gb 2-port BASE-T I350-T2V2 Adapter
HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter
10 Gigabit Ethernet adapters
HPE Ethernet 10Gb 2-port BASE-T QL41401-A2G Adapter
HPE Ethernet 10Gb 2-port SFP+ QL41401-A2G Adapter
HPE Ethernet 10Gb 2-port BASE-T 57810S Adapter
HPE Ethernet 10Gb 2-port BASE-T 57810S Adapter
HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter
HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter
HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter
HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter
25 Gigabit Ethernet Adapters
HPE Ethernet 10/25Gb 2-port SFP28 QL41401-A2G Adapter
HPE Ethernet 10/25Gb 2-port SFP28 BCM57414 Adapter
HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter
Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
100 Gigabit Ethernet Adapters
HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter
FlexibleLOM Adapters
Pensando Distributed Services Platform for HPE iLO Sideband Management Adaptive LOM Module
HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter
HPE FlexFabric 10Gb 2-port FLR-T 57810S Adapter
HPE FlexFabric 10Gb 2-port FLR-SFP+ 57810S Adapter
HPE Ethernet 10Gb 2-port FLR-T BCM57416 Adapter
HPE FlexFabric 10Gb 4-port FLR-T 57840S Adapter
HPE Ethernet 10Gb 2-port FLR-SFP+ BCM57414 Adapter
HPE Ethernet 10/25Gb 2-port FLR-SFP28 BCM57414 Adapter
HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter
HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter
HPE Ethernet 10Gb 2-port FLR-T X550-AT2 Adapter
HPE Ethernet 10/25Gb 2-port FLR-SFP28 QL41401-A2G Converged Network Adapter
HPE InfiniBand
HPE InfiniBand FDR/Ethernet 40/50Gb 2-port 547FLR-QSFP Adapter
HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter
HPE InfiniBand EDR 100Gb 1-port 841QSFP28 Adapter
HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter
HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe3 x16 MCX653105A-ECAT Adapter
HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe3 x16 MCX653105A-HDAT Adapter
HPE InfiniBand HDR PCIe3 Auxiliary Card with 350mm Cable Kit

Cooling

Both the DL380 Gen10 Plus and the DL380 Gen10 feature hot-swap, redundant high performance/standard fan kits as well as high performance/standard heat sink kits.

Graphics

Integrated Video Standard

Video modes up to 1920 x 1200@60Hz (32 bpp)

16MB Video Memory

HPE iLO 5 on System Management Memory

32 MB Flash

4 Gbit DDR 3 with ECC protection

HPE Computation and Graphics Accelerators

Both the DL380 Gen10 Plus and the DL380 Gen10 can be configured with the NVIDIA A100 which provides unprecedented acceleration at every scale. NVIDIA A100 delivers up to 20x increased performance in comparison to the previous generation.

They can also be configured with the NVIDIA T4 which accelerates diverse cloud workloads, including machine learning, HPC, data analytics and graphics.

The HPE ProLiant DL380 Gen10 Plus GPU:

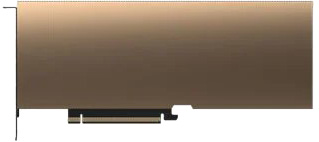

The DL380 Gen10 Plus can be configured with the NVIDIA A40, which has been designed and built to deal with the most demanding visual computing workloads and features the newest gen RT cores, CUDA cores, tensor cores and 48GB of memory.

Full List Of Supported GPUs
NVIDIA A100 40GB PCIe Computational Accelerator for HPE
NVIDIA A40 48GB PCIe Graphics Accelerator for HPE
NVIDIA A30 24GB PCIe Accelerator for HPE
NVIDIA A10 24GB PCIe Graphics Accelerator for HPE
NVIDIA T4 16GB Computational Accelerator for HPE

The HPE ProLiant DL380 Gen10 GPU:

The DL380 Gen10 can be configured with the NVIDIA Quadro RTX 8000, which was the first ever ray tracing GPU. It features outstanding scalability and performance, with 48GB of fast GDDR6 memory and NVIDIA NVLink.

Full List of Supported GPUs
NVIDIA A100 40GB PCIe Computational Accelerator for HPE
NVIDIA Quadro P2200 Graphics Accelerator for HPE
NVIDIA Quadro RTX 6000 Graphics Accelerator for HPE
NVIDIA Quadro RTX 4000 Graphics Accelerator for HPE
NVIDIA Quadro RTX 8000 Graphics Accelerator for HPE
NVIDIA T4 16GB Computational Accelerator for HPE
NVIDIA M10 Quad GPU Module for HPE
Xilinx Alveo U50 Accelerator for HPE
Xilinx Alveo U250 Accelerator for HPE

Interfaces

HPE ProLiant DL380 Gen10 Plus Interfaces

Serial Optional, rear
Display Port 1 optional front display port via Universal Media Bay
VGA Port 1 standard, rear for all chassis
Network Ports None standard. Choice of OCP networking card or stand-up networking card required. BTO models will come pre-selected with a primary OCP networking card.
HPE iLO Remote Management Network Port 1 Gb Dedicated, rear
Front iLO Service Port 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required.
Micro SD Slot Optional via HPE 32GB microSD RAID1 USB Boot Device Notes: The Micro SD slot is not a hot-pluggable device.
USB 3.0 Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis
SID (Systems Insight Display) Optional Notes: Not shipping as standard. Available as a CTO option or as a field upgrade (P27096-B21).

HPE ProLiant DL380 Gen10 Interfaces

Serial Optional, rear
Display Port 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard
Network Ports 4 x 1GbE embedded (if equipped/depending on model) One (1) FlexibleLOM slot available on all chassis types (supporting various NIC adapters)
HPE iLO Remote Management Network Port 1 Gb Dedicated
Front iLO Service Port 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required, 880123-B21)
Micro SD Slot 1 Micro SD Notes: The Micro SD slot is not a hot-pluggable device.
USB 3.0 Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis
SID (Systems Insight Display) Optional Notes: Not shipping as standard. Available as a CTO option or as a field upgrade (826703-B21).

Embedded Management

HPE ProLiant DL380 Gen10 Plus HPE ProLiant DL380 Gen10
HPE Integrated Light-out (HPE iLO) With HPE iLO you can monitor your servers for ongoing management, reporting, service alerting and remote management.
UEFI Configure and boot your server solutions safely and securely with industry standard Unified Extensible Firmware Interface (UEFI).
Intelligent Provisioning Easy, simple server and OS provisioning for one or multiple servers with Intelligent Provisioning.
iLO RESTful API iLO RESTful API is Redfish API conformance and delivers significantly easier server management automation like configuration and maintenance tasks based on modern industry standards.

Operating System and Virtualisation Software

Both the DL380 Gen10 Plus and the DL380 Gen10 can be configured with a number of popular operating systems and virtualisation software. Depending on the processor your server solution is configured with, compatible software options may differ.

HPE ProLiant DL380 Gen10 Plus Operating Systems

Configured with 3rd Generation Intel Xeon Scalable Processors
Windows Server 2019: Essentials, Standard, Datacenter
Windows Server 2016: Essentials, Standard, Datacenter
Microsoft Hyper-V Server: 2016 & 2019
VMware vSphere 6.7 U3 w/P03, 7.0 U2
Red Hat Enterprise Linux (RHEL) 7.9 & 8.2 – Includes KVM
SUSE Linux Enterprise Server (SLES) 12 SP5, 15 SP2 (includes Xen & KVM)
Ubuntu 20.04 LTS
Oracle Linux 7.9 (UEK5 and UEK6)

HPE ProLiant DL380 Gen10 Operating Systems

Configured with 2nd Generation Intel Xeon Scalable Processors
Windows Server 2019: Essentials, Standard, Datacenter
Windows Server 2016: Essentials, Standard, Datacenter
Windows Server 2012 R2: Essentials, Standard, Datacenter
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
VMware vSphere 6.0 U3, 6.5 U2 through U.3 & 6.7 U1 through U3, 7.0
ClearOS: 7.6; ClearVM: 2.0
Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase**, 8.0
SUSE Linux Enterprise Server (SLES) 12 SP3, 15 (includes Xen)
Configured with 1st Generation Intel Xeon Scalable Processors
Windows Server 2019: Essentials, Standard & Datacenter
Windows Server 2016: Essentials, Standard & Datacenter
Windows Server 2012 R2: Essentials, Standard & Datacenter
Micrsoft Hyper-V Server: 2012 R2, 2016 & 2019
VMware vSphere 6.0 U3, 6.5 through U.3 & 6.7 through U3, 7.0
ClearOS: 7.6; ClearVM: 2.0
Red Hat Enterprise Linux (RHEL) 6.9, 7.3
SUSE Linux Enterprise Server (SLES) 11 SP4, 12 SP2 & 15 (includes Xen)
Ubuntu: 16.04.3 HWE (4.10), 18.04 LTS (4.15.0)
Oracle Linux: Oracle Linux/UEK 6.9, 7.4; Oracle VM 3.4.4
Citrix: Hypervisor: 8,0, 8.1, 8.2; XenServer 7.1, 7.4, 7.5, 7.6

Umfangreiche Tests

Vor dem Verlassen unserer Build- und Konfigurationseinrichtung werden alle unsere Server- und Speicherlösungen einem umfangreichen 48-Stunden-Test unterzogen. Zusammen mit den von uns verwendeten OEM-HPE-Komponenten stellen wir sicher, dass alle unsere Server- und Speicherlösungen die strengsten Qualitätsrichtlinien erfüllen, die von uns verlangt werden.

Anpassungsservice

Unser Hauptziel ist es, preisgünstige, qualitativ hochwertige Server- und Speicherlösungen anzubieten. Wir wissen, dass jedes Unternehmen unterschiedliche Anforderungen hat und daher einen umfassenden Anpassungsservice anbieten kann, um Server- und Speicherlösungen bereitzustellen, die Ihren individuellen Anforderungen entsprechen.

Vertrauen in die größten Marken der Welt

Wir haben uns als einer der größten Speicheranbieter in den USA etabliert und gelten seit 1989 als bevorzugter Lieferant von Server- und Speicherlösungen für einige der weltweit größten Marken, darunter:

Links

Privatsphäre Kontakt Impressum

Top HPE Servers

    • Top HPE Storage

    • Kontaktieren Sie Uns

    Call Our DE Sales Team Now!

    +49 89 1208 5600
